XS2 First stage
- AC2 piston 1st stage
- Working pressure (INT connection) 0-232 bar
- Working pressure (DIN connection) 0-300 bar
- Calibration pressure 9.5-10 bar
- Calibration adjustment range +/- 0.5 bar
- Air supply 2100 l/min (*)
- High pressure seats (HP) 1
- Low pressure seats (LP) 4
- The XS2 is cold water rated down to 4 Degrees.
Values measured at LP seat outlet with second stage connected and 150 bar pressure in the cylinders.

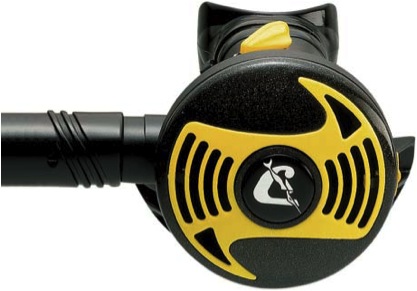

XS2 2nd stage
Values measured in compliance with UNI EN 250 standards.
